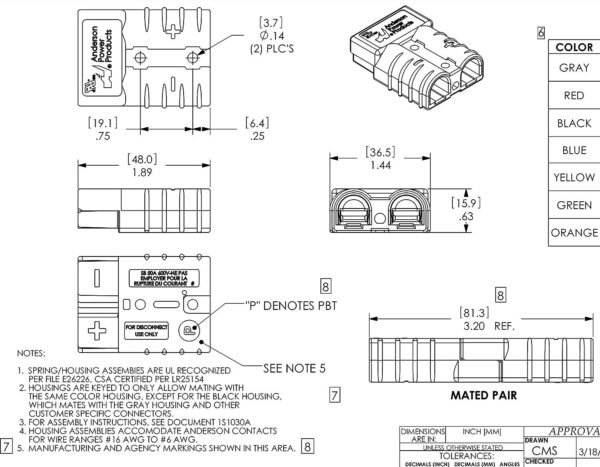

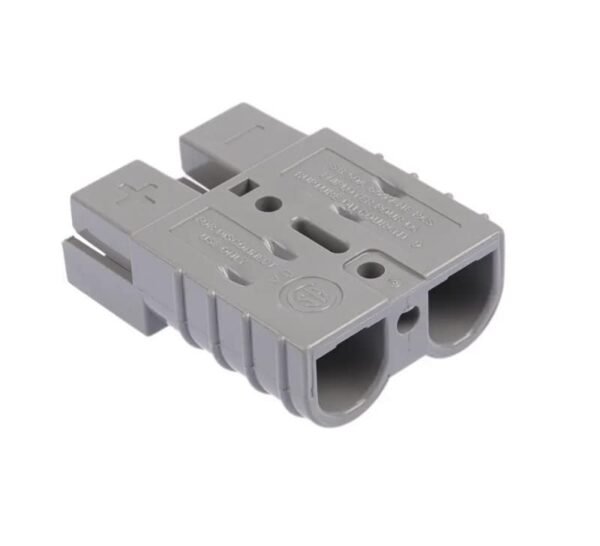

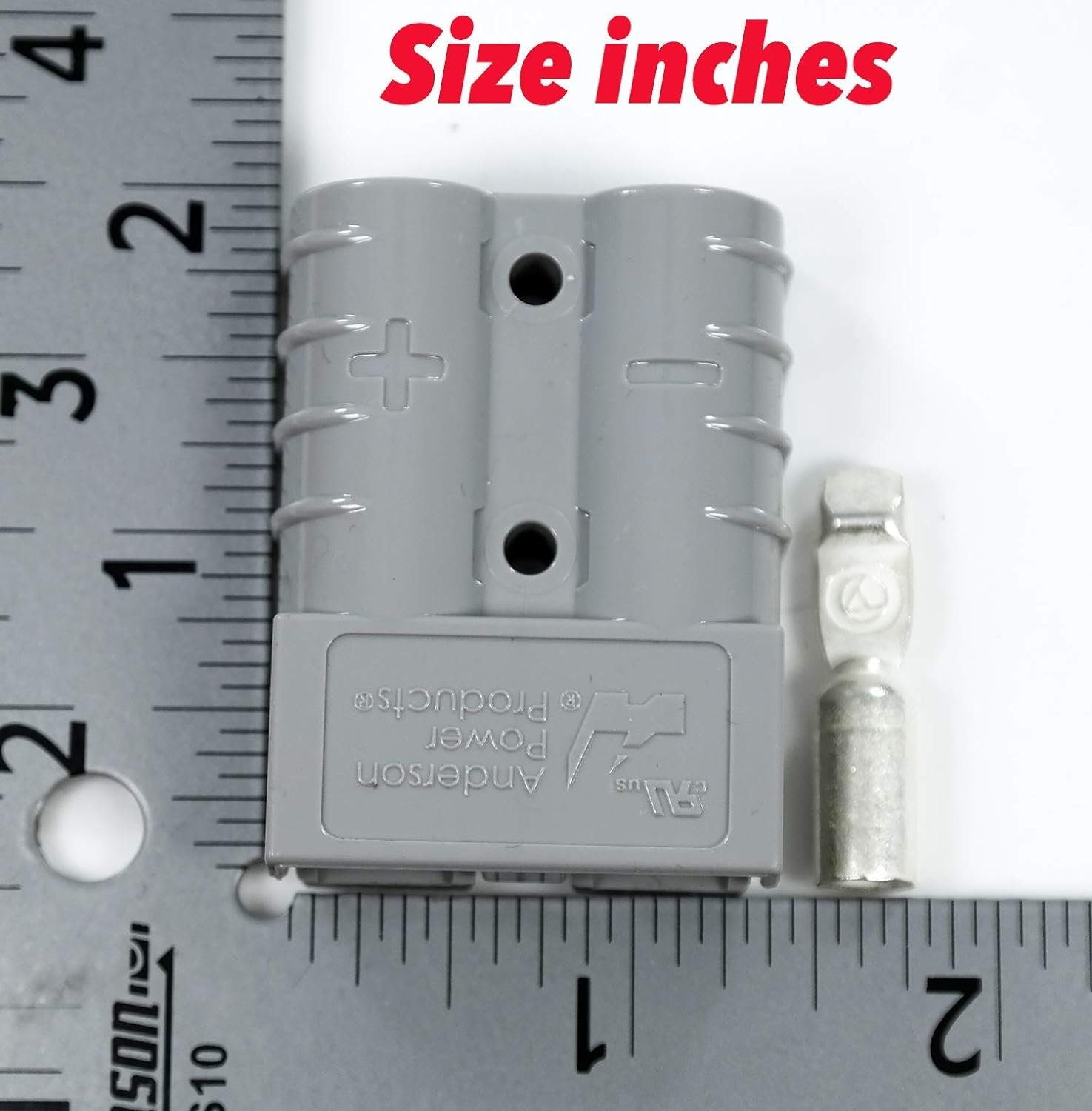

SB50 Anderson Connector 600V 50A Grey

Material: connector made of Polycarbonate flame retardant material, automatically extinguish when leaving the fire source. The connector is inlaid with stainless steel shrapnel, and the contact terminals are made of pure copper. The surface is silver-plated to make the electrical conductivity more stable Wire rod recommendation: widely compatible with 6AWG – 8AWG, with welding or crimping process fixation Convenient installation: you can install these battery quick connector or disconnect plug quickly, just insert the wires into the terminal pins, and then solder or crimp them, connector ends are identical, so either ends are suitable for connection to the power or load side Widely used: fast battery connector provides a simple method, disconnect the power supply can be connected to the winch, or other electrical equipment, such as remote battery charger, UPS power supply, power inverter, solar power device, trailer, cleaning equipment, lawn mower, or the need for high current, rapid operation of any other purpose disconnect connectors.

1. The only connector in which male and female type same and can be used either charging side or discharging side as it has interchangeable unique design.
2. Suitable for Heavy load 600volt 50AMP.
3. Charging/Discharging socket are identical and interchangeable. Plus side can be connected with other side plus only, so no possibility of wrong polarity or short circuit.
